Parallel gripper (3-Finger)
- Home
- Product Information
- End of Arm Tooling (EOAT)
- Grippers
- Parallel gripper (2, 3 Finger)
- Parallel gripper (3-Finger)(MCHG2)

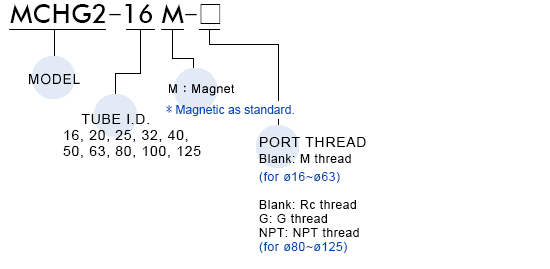

Tube I.D. φ16, 20, 25, 32, 40, 50, 63, 80, 100, 125 (mm). Through holes in body enable simple mounting.
- Through holes in body enable simple mounting.
- Body manufactured from high tensile, anodised aluminum giving good resistance to corrosion.
- Available with sensors.
- Magnetic as standard.
Acting type | Double acting |
---|---|
Tube I.D. (mm) | 16(※2), 20, 25, 32, 40, 50, 63(※2), 80, 100, 125 |
Stroke (mm) | 4, 6, 8, 12, 16, 20, 24, 32 |
Port size | M3×0.5, M5×0.8, Rc1/8, Rc1/4, Rc3/8 |
Fluid | Air |
Operating pressure range | 0.1~0.6 MPa |
Ambient temperature | -10~+60℃ (No freezing) |
Max.operating frequency | 30~120 (c.p.m) |
Lubrication | Not required |
Effective force (N.m) at (0.5 MPa) | Extemal: 14N~1270N, Internal: 16N~1320N (※1) |
Sensor switch | 2 wire: RDFE(V): Non-contact 3 wire: RNFE(V): NPN, RPFE(V): PNP |
Weight | 80g~6200g |
Remark | ※1. Values for ø16~ø25 are with gripping length(L) = 20 mm, for ø32~ø63 with gripping length(L) = 30 mm, and for ø80~ø125 with gripping length(L) = 50 mm.Refer to “Effective Gripping Force” data for the gripping force at each gripping position. ※2. ø16, ø63 are available with 2- finger type (Made to order). Please contact us if other size is needed. |
