MCHX2 Wide type parallel gripper | Two-jaw parallel, dual-piston, high clamping force
Tube I.D. φ10, 16, 20, 25, 32, 40 (mm), Two-jaw parallel gripper, Dual piston design for high gripping force, Very long stroke, Dust-proof design for longer lifetime.
- Two-jaw parallel gripper.
- Dual piston design for high gripping force.
- Very long stroke.
- Dust-proof design for longer lifetime.
- Magnetic as standard.

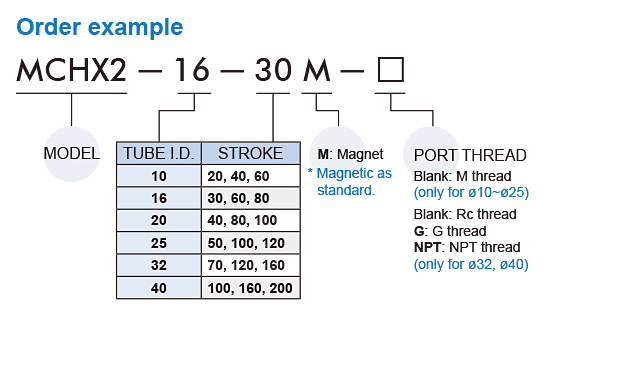

| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 10, 16, 20, 25, 32, 40 |
| Stroke | 20~200 mm |
| Medium | Air |
| Operating pressure range | 0.2~0.6 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubrication | Not required |
| Repeatability | ±0.1mm |
| Sensor switch | RDC(V), RQC(V), RDFE(V) |
| Remark | ※ Maintenance: Re-Lubrication after appr. 1.5 million cycles recommended. |
