MCHY2 Angular Gripper Cam Style | Slim design for space-saving installation
Tube I.D. φ10, 16, 20, 25 (mm). Compact design and lightweight construction. High gripping forces achieved via internal cams. Reduced required offset while moving gripper.
- Compact design and lightweight construction.
- High gripping forces achieved via internal cams. Reduced required offset while moving gripper.
- Reference points on gripping fingers are standard.
- Sensors can be mounted in any one of four positions.
- Rod seal prevents foreign objects to enter piston.
- Magnetic as standard.

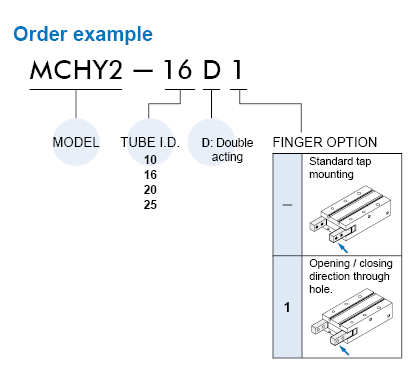

| Acting type | Double Acting |
|---|---|
| Tube I.D. (mm) | 10, 16, 20, 25 |
| Medium | Air |
| Operating pressure range | 0.2~0.6 MPa |
| Ambient temperature | －10~＋60℃ (No freezing) |
| Repeatability | ±0.2 mm |
| Max.operating frequency | 60 (c.p.m) (*1) |
| Lubrication | Not required (*2) |
| Effective force (N.m) at (0.5 MPa) | 0.16~2.28 N.m |
| Operating angle (both sides) | Opened side:180°~182°, Closed side:-3° |
| Sensor switch | RDC(V), RQC(V) |
| Weight | 80g, 150g, 320g, 600g |
| Remark | *1. Speed controllers are required. *2. Sliding area of jaws need scheduled relubrication. |
Please log-in
- Register
- Login In
- Anonymous login Caution
- Error Report
Anonymous login Caution Procedure Demonstration
- Video Guide ： 2D／3D downloading procedure demonstration.
- PDF file : 2D／3D downloading procedure demonstration.
- Anonymous Login allows you to download 2D/3D files without an account.
- Please confirm the accurate product model number before generating the 3D model files.
- If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
- When you use this CAD software to generate a file, please confirm that it matches the size and tolerance of the "PDF Catalog" on the website. If there is any discrepancy, please click the " Error Report" button above, and inform the model and wrong size, we will modify it as soon as possible, thank you for your assistance !
RDC/RQC Sensor switch
Assembling style: MAM*, MCJU, MCFB, MCMJP, MCDJ, MGT*-32~63, MCSF-5, MCRPM-20~40, MCRPMD-10, MCRPMS, MSBE, MCRJ-S, MCRC, MCHC-6/32/40, MCHCJ, MCHD, MCHH, MCHG2, MCHY2, METI, MEQI, MEGT, MEJQ, MESF2, MESBE.
