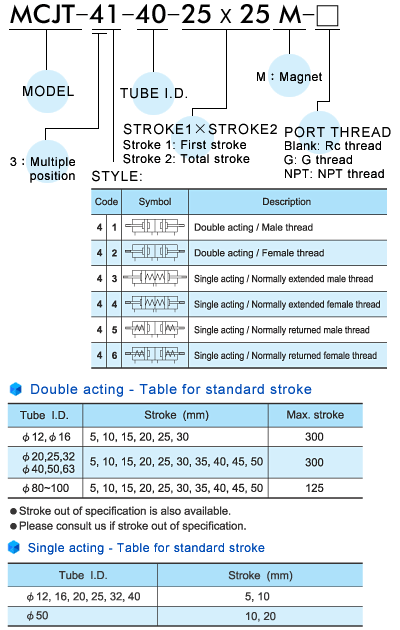

Compact cylinders ( Back to back type)
Tube I.D. φ 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm), Ultra Compact, light weight and space saving cylinder. Single and double acting available.
- Ultra Compact, light weight and space saving cylinder.
- Wide range of bore sizes and strokes (12 mm~100 mm).
- Single and double acting available.
| Acting type | Double acting / Single acting |
|---|---|
| Tube I.D. (mm) | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
| Port size | M5×0.8, Rc1/8, Rc1/4, Rc3/8 |
| Medium | Air |
| Operating pressure range | Double acting: 0.02~1 MPa, Single acting: 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Sensor switch | RCB, RCE, RCE1, RDEP |
RCE/RDE Sensor switch
Assembling style: MCJA, MCJQ, MCKJQ, MCFA, MCGB, MCGS, MCGD, MCGM, MCG3, MCDA, MCSH, MCSS, MCSQ, MCSF, MCRPMD, MCRA, MCKB, MCKC, MCHA, MCHB, MCHC, MSB*, MSL*.
RCB/RDB Sensor switch
Assembling style: MCJQ2, MCGA, MCGJ, MSB* .
RDEP Sensor switch
Assembling style: MCJA, MCJQ, MCKJQ, MCFA, MCGB, MCGS, MCGD, MCGM, MCG3, MCDA, MCSS, MCSH, MCSQ, MCRA, MCKB, MCKC, MSB*, MSL*.
MFC Floating joint
Cyl. dia. φ 6~160（mm）, Can be used in many applications. Strong simple construction designed for repetitive high usage.
MFCS Floating joint
Cyl. dia. φ 6~32（mm）,The abnormal noise can be prohibited. Small in dimension but can be loaded high tension & compression.
