MCRPLK Rodless cylinder with linear | 50% space-saving, high load strength
Tube I.D. φ16, 25, 32, 40 (mm), 50% space saving when compared to conventional cylinders. End caps with 3 air connections and adjustable cushioning. Load strength is higher than MCRPLF series (about 4 Multiple).
- 50% space saving when compared to conventional cylinders.
- End caps with 3 air connections and adjustable cushioning.
- Load strength is higher than MCRPLF series (about 4 Multiple).
- Magnetic as standard.

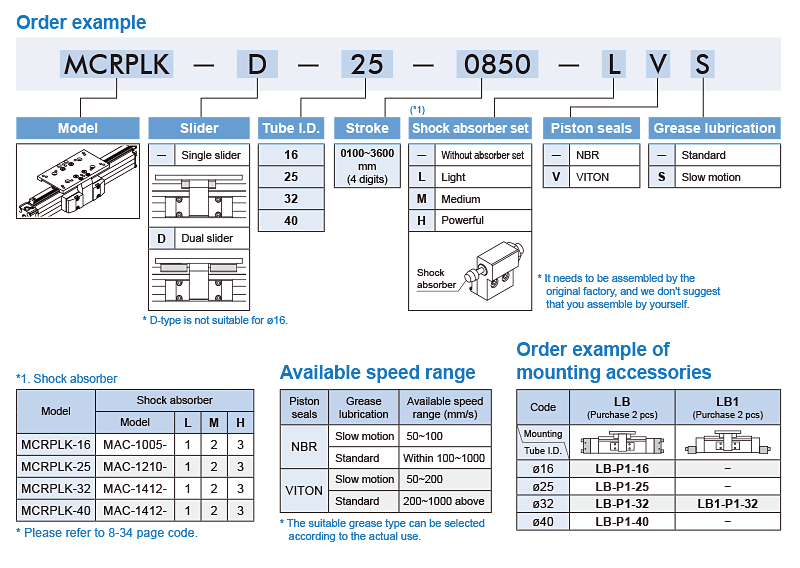

| Acting type | Double acting |
|---|---|
| Tube I.D.(mm) | 16, 25, 32, 40 |
| Port size | M5, G1/8, G1/4 |
| No. of port | 3 |
| Medium | Air |
| Operating pressure range | 0.1~0.78 MPa |
| Stroke range (※) | φ16：100~3000 mm / φ25~40：100~3600 mm |
| Ambient Temperature | -10℃ ~ +80℃ (No freezing) |
| Lubrication | With or Without lubrication |
| Cushion | With adjustable cushion at both ends |
| Sensor Switch | RCAL |
| Sensor Switch Holder | HPL |
| Remark | ※1: In increments of 1mm. ※2: The tube isn't airtight, so the cylinder is allowed little leakage. Before the cylinder is sale, it has passed the standard of leakage test. |
