Hydraulic with piston sensing cylinder

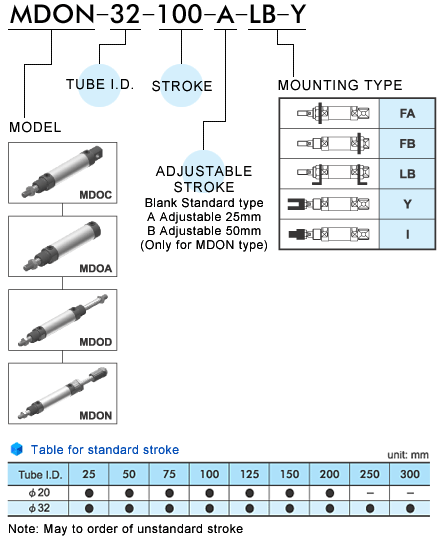

Tube I.D. φ20, φ32 (mm). Double acting. MDOC: Pivot type, MDOA: Front nose mounting type, MDOD: Double end rod type, MDON: Adjustable foward stroke type.
| Tube I.D. (mm) | 20, 32 |
|---|---|
| Medium | Filtered oil |
| Material of cylinder barrel | 20: Anodised aluminium / 32: Stainless steel |
| Max. operating pressure | 3.5 MPa |
| Proof pressure | 5 MPa |
| Speed range | 0.5~300 mm/sec |
| Ambient temperature | -10~＋60 ℃ (No freezing) |
| Sensor switch | LN01G |
