Shock absorbers

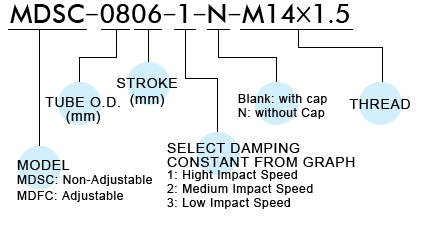

MDSC: Non-Adjustable, MDFC: Adjustable.
- Increase production rate.
- Extend machine life.
- Simplify equipment design.
- Reduce maintenance cost.
- Reduce vibration and noise levels.
| Thread | M8x10 ~ M36x1.5 |
|---|---|
| Stroke | 6~60 mm |
| Max. Nm per cycle | 1.8~220 Nm |
| Effective max. weight | 0.9~3250 kg |
| Max. impact speed | 0.8~4 m/s |
| Max. Nm per hour | 2,400~105,600 Nm |
| Operating temp. | -10~+80℃ (No freezing) |
| Weight | 12~1144 g |
