Tube I.D.: φ20, 32, 40, 50, 63, 80(mm), The cylinder barrel is manufactured from anodised aluminium alloy. Internal wall is specially treated, featuring maximum smoothness and long service.
- Short stroke and compact body design minimizes total length.
- The cylinder barrel is manufactured from anodised aluminium alloy. Internal wall is specially treated, featuring maximum smoothness and long service.
- High quality and durability.

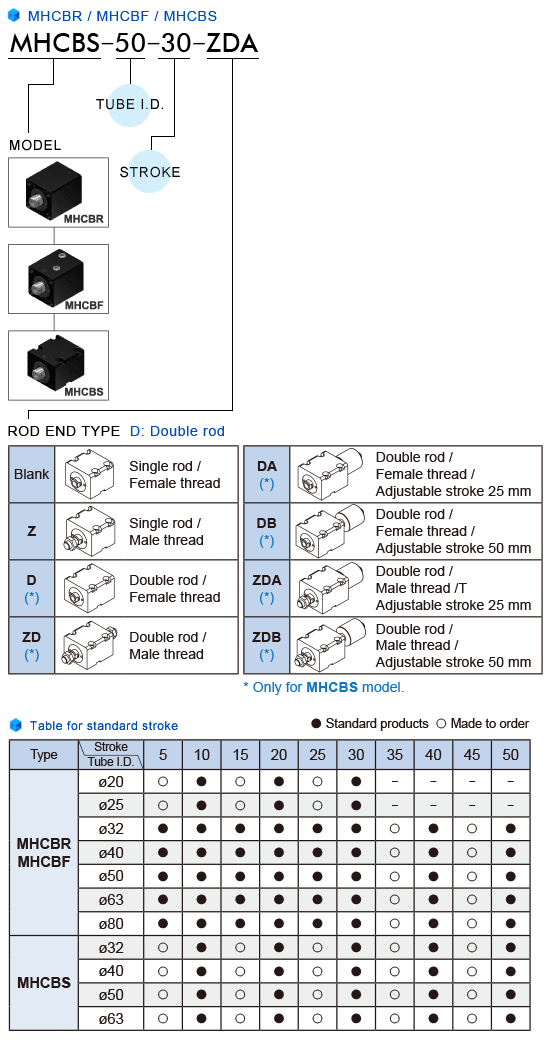

Tube I.D. (mm) |
20,25,32,40,50,63,80 |
Standard stroke (mm) |
30~100 |
Medium |
Filtered oil |
Max. operating pressure |
14 MPa |
Material of cylinder barrel |
Carbon steel |
Ambient temperature |
-10~+60 ℃ (No freezing) |
