Power cylinder
Pressure boost model: 1T, 3T, 5T, 8T, 10T, The power cylinder combine booster and hydraulic cylinder. It only uses pneumatic control valve.
- Hydro-pneumatic solution provides high power in confined space.
- Simple construction make these units ideal in many applications where previously hydraulics were the only option.
- Quiet in operation.
- Only requires a pneumatic valve to make the system operate.
- Wide range of working strokes and output forces available.

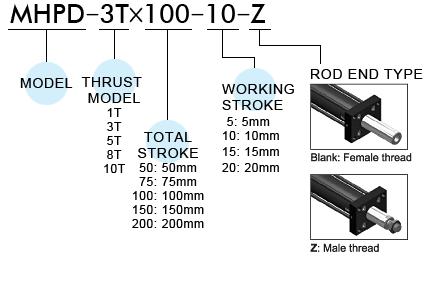

| Pressure boost model | 1T, 3T, 5T, 8T, 10T |
|---|---|
| Total stroke (mm) | 50, 75, 100, 150, 200 |
| Medium | Filtered air with or without lubrication |
| Operating pressure range | 0.3 ~ 0.8 MPa |
| Working stroke | 5, 10, 15, 20 mm |
| Ambient temperature | -10~＋60 ℃ (No freezing) |
