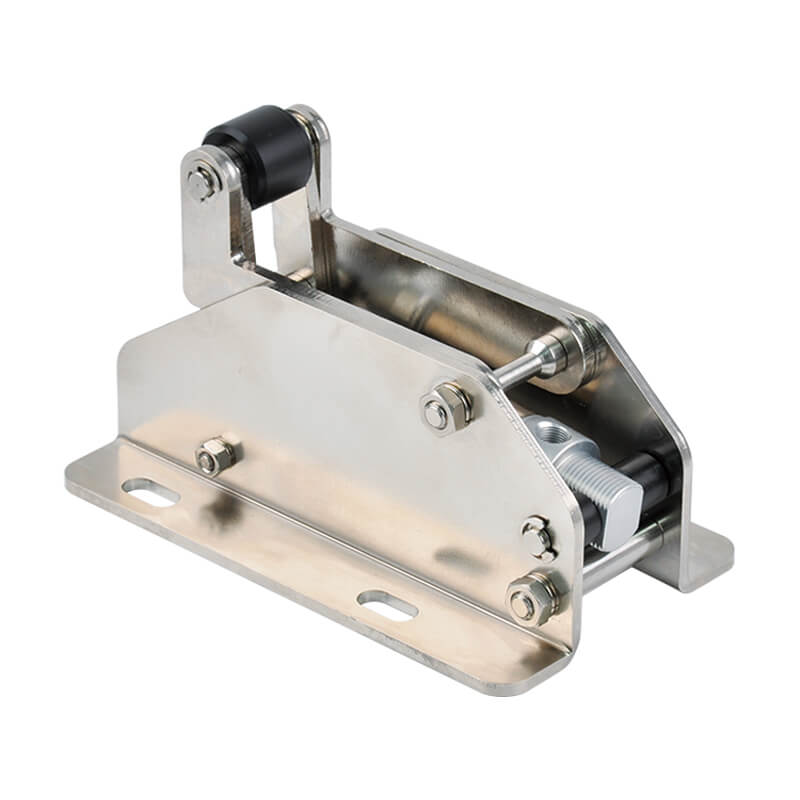

Stopper cylinder
Tube I.D. φ 25, 40 (mm). Horizontal mounting type. Built-in roller.
| Operation type | Double acting without spring, Stopper with roller / Double acting with spring Stopper with roller (Option) |
|---|---|
| Standard stroke | φ25-30 / φ40-30 |
| Medium | Air |
| Operating pressure range | 0.2~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5℃~＋60℃ (No freezing) |
| Lubrication | Not required |
| Cushion | With rubber cushion pad |
| Magnet | φ25-30 : Without magnet / φ40-30 : With magnet |
| Sensor switch | RCM-(Band)BM20,BM40 |
| Weight | 8750 g |
