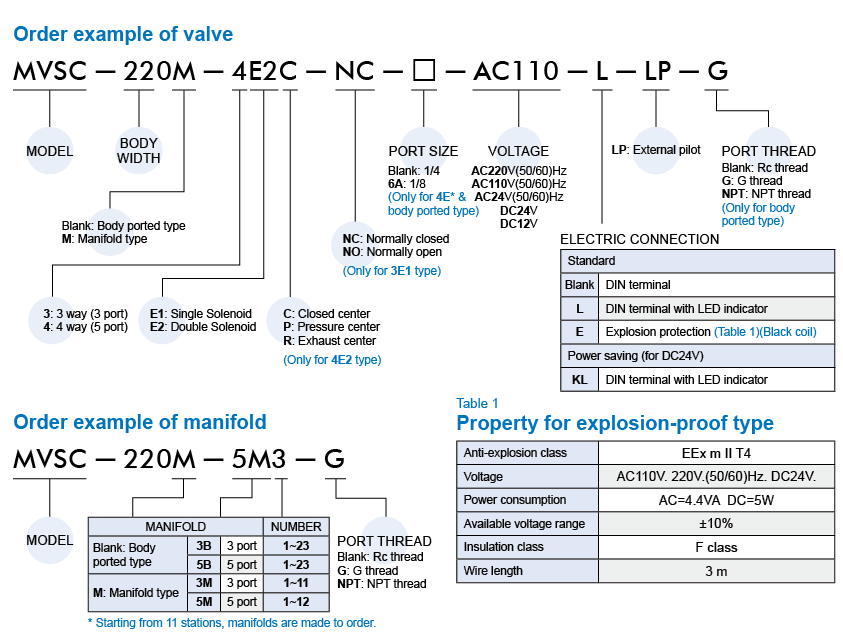

MVSC-220

Bore No. 8A, Port size: Rc1/8, Rc1/4, No.of port: 3, 5, No.of position: 2, 3, Operating pressue: 0~0.8 MPa, Proof pressure: 1 MPa.

Bore No. 6A, 8A
Port size Rc1/8, Rc1/4
No. of port 3, 5
No. of position 2, 3
Medium Air
Operating pressure range 0.2~0.8 MPa, 0.3~0.8 MPa
Operating pressue (LP) 0~0.8 MPa
Pilot pressure range (LP) (0.34×P*+0.1)~0.5 MPa
Proof pressure 1 MPa
Effective orifice 16mm2, 18 mm2
Response time 30 ms, 40 ms
Ambient temperature -5~+50℃ (No freezing)
Voltage AC110V, 220V, 24V (50/60)Hz, DC24V, 12V
Power consumption AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W
Available voltage range ±10%
Insulation class F class
Weight 181g, 294g, 198g, 313g, 352g
Remark * P: Operating pressure







Anonymous login Caution Procedure Demonstration

  • Video Guide : 2D/3D downloading procedure demonstration.
  • PDF file : 2D/3D downloading procedure demonstration.
  • Anonymous Login allows you to download 2D/3D files without an account.
  • Please confirm the accurate product model number before generating the 3D model files.
  • If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
  • When you use this CAD software to generate a file, please confirm that it matches the size and tolerance of the "PDF Catalog" on the website. If there is any discrepancy, please click the " Error Report" button above, and inform the model and wrong size, we will modify it as soon as possible, thank you for your assistance !
UM PU tube

Available color :Transparent(T), Black(B), Blue(BU), Transparent blue(CB), Orange(O), Green(G), Yellow(Y), Red(R), Operating pressure range:116 psi (0.8MPa)(65%RH at 20℃),Ambient temperature:-5~140℉(-15~60℃)(No freezing)


UML PU Tube-coiling tube
Medium:Air,Operating pressure range:Operating 0~100 psi (0~0.7 MPa), Ambient temperature:-5~140℉(-15~60℃) (No freezing).

MSR Plastic silencer
Modle : MSR*-* : MSR01-S, MSR01-B, MSR02-S, MSR02-B, MSR03-B, Port size: R1/8, R1/4, R3/8.

MSL Brass silencer
Port size: M5, R1/8, R1/4, R3/8, R1/2, R3/4, R1, S type, B type.

MSLC2 Silencer throttle valve
Modle: MSLC2-01,MSLC2-02,MSLC2-03,MSLC2-04,Port size: R1/8, R1/4, R3/8, R1/2.

MJBV Check valve
Modle: MJBV-01, MJBV-02, MJBV-03, MJBV-04, Port size: 1/8", 1/4", 3/8", 1/2", Operating pressure range: 0.1~0.7 MPa.

MSLC Silencer throttle valve
Port size: R (NPT, G)1/8, 1/4, 3/8, 1/2, 3/4 ,1, Body material: Brass (#C3604), Stainless steel (#304).

MSLT Silencer
Port size: R1/8, 1/4, 3/8, 1/2, 3/4, 1.

MSLE Plastic silencer
The silencer is a porous polyethylene body moulded to a polyethylene (PE) adapter.
