MVSD-180

Inquiry
Body width: 18 mm, Port size: Rc1/8, Operating pressure range: 0.15~0.8 MPa, Proof pressure: 1 MPa, Flow:490~817 l/min.
Body width 18 mm
Bore No. 6A
Port size Rc1/8
No. of port 3,5
No. of position 2,3
Medium Air
Operating pressure range 0.15~0.8 MPa, 0.2~0.7 MPa (5/3)
Proof pressure 1 MPa
Flow 490~817 l/min
Effective orifice 15, 12 mm2 (5/2) , 9 mm2 (5/3)
Response time 30 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC24V
Power consumption AC=3.7/ 3.1VA, DC=2.4W
Available voltage range ±10%
Insulation class F class
Weight 120g~190g

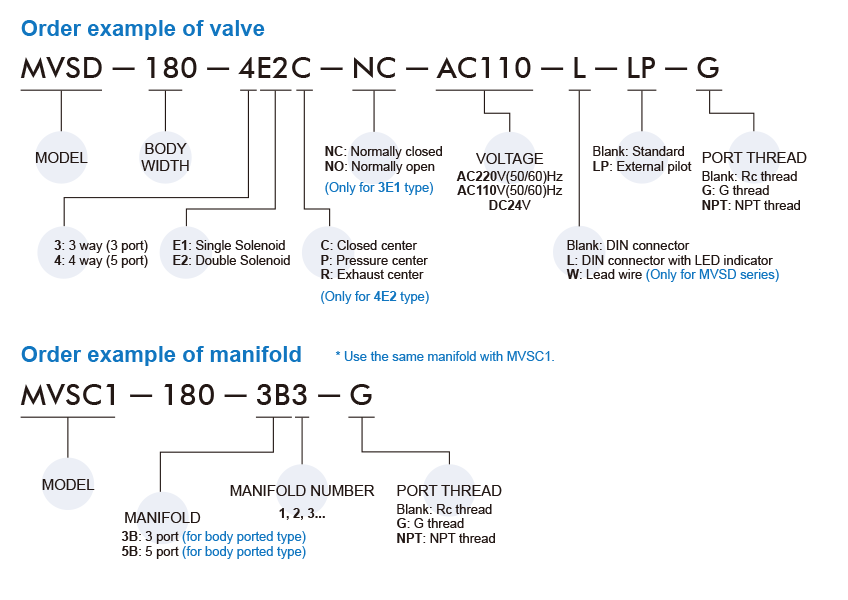

proimages/prod_orderno/E_MVSD-180.gif
