>Body width: 18 mm, Port size: Rc1/4, Operating pressure range: 0.15~0.7 MPa, Proof pressure: 1 MPa, Flow: 599~1470 l/min.
  • Don't continuous energizing for about 2 hours or more.
  • The total energizing time of a day don't exceeds the total non-energizing time even if it is intermittent energizing.

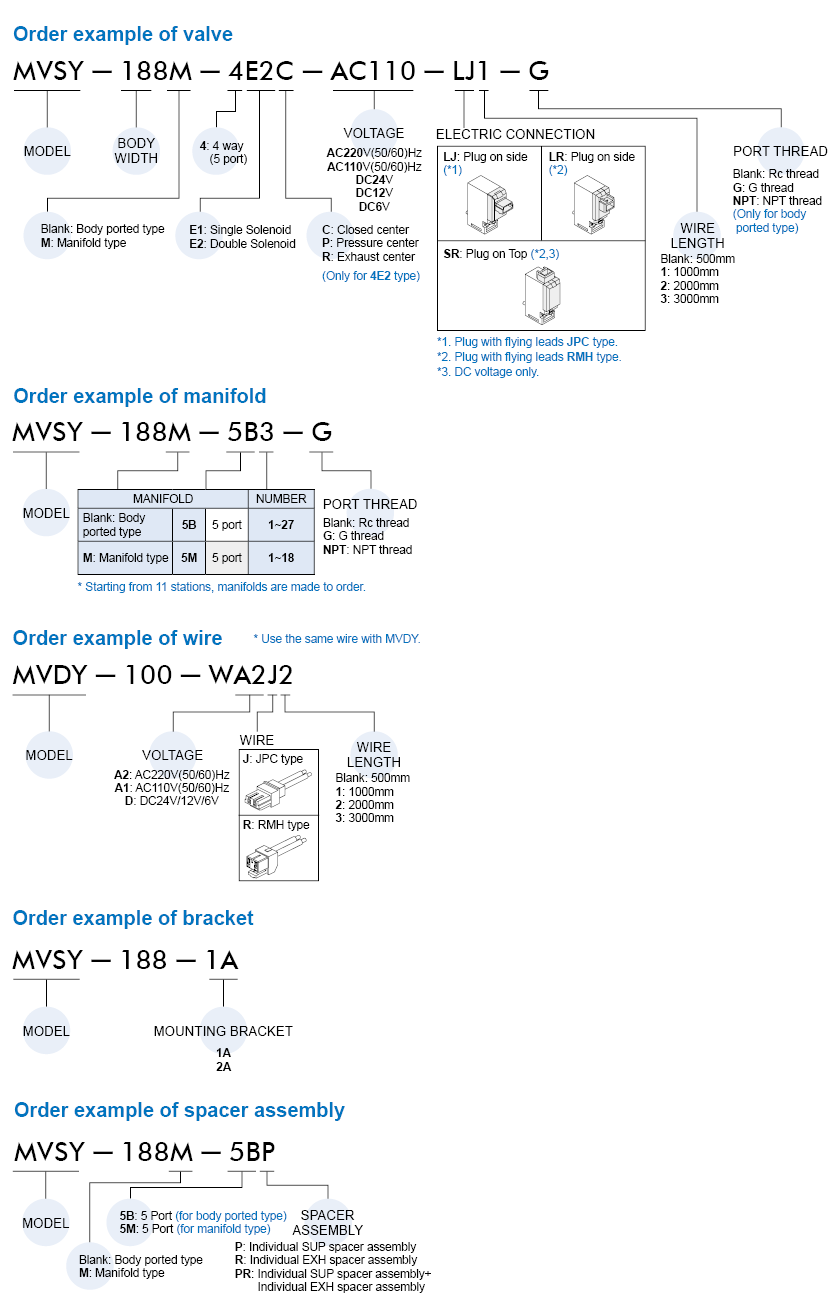

Body width 18 mm
Bore No. 8A
Port size Rc1/4
No. of port 5
No. of position 2, 3
Medium Air
Operating pressure range 0.15~0.7 MPa, 0.2~0.7 MPa (5/3)
Proof pressure 1 MPa
Flow 599~1470 l /min
Effective orifice Body ported : 15 mm2,16.3/27/12.4 mm2 (5/3)
Manifold : 15 mm2,13.5/18.4/11 mm2 (5/3)
Response time 23 ms, 50 ms (5/3)
Max. operating frequency 5 Hz
Ambient temperature +5~+50°C
Voltage AC110V, AC220V (50/60)Hz, DC6/12/24V
Power consumption AC=1.6 / 2.5VA, DC6/12V=1.2W, DC24V=0.55W (LED indicator)
Available voltage range ±10%
Insulation class B class
Weight 77g, 102g, 106g
