Vacuum Pen

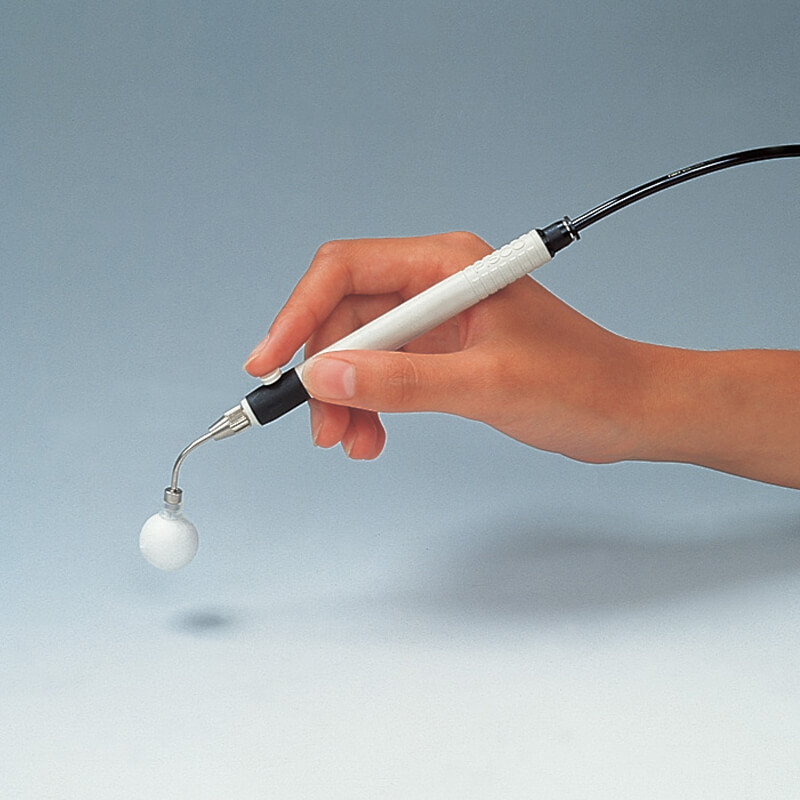

Air Pincette incorporating a vacuum pad and vacuum generator in the pen-shaped body. Two types of characteristics are prepared. 2 types of holder types are available.
- Air Pincette incorporating a vacuum pad and vacuum generator in the pen-shaped body.
Best suitable for assembling small components. - Two types of characteristics are prepared.
Low cost VTA type (no valve incorporated) and VTB with built-in valve model which features low noise and energy saving by flowing air only during service are available. - 2 types of holder types are available.
Depending on applications, two types are available:straight type and conventional curved type. - Antistatic type suitable for use on the manufacturing or assembly line that requires dissipation of static electricity and prevention of electrification is prepared.
| Model | VTA | VTB |
|---|---|---|
| Fluid medium | Air | |
| Operating pressure range | 0.15~0.7 MPa | |
| Rated supply pressure | 0.5 MPa | |
| Final vacuum | -85 kpa | -80 kpa |
| Nozzle diameter | ø0.5 mm | ø0.4 mm |
| Suction flow | 2 L/m[ANR] | |
| Operating temp. range | 0~60℃ (no freezing) | |
| Surface resistance | 104~108Ω（Antistatic type only） | |
| Air supply port （Applicable Tube dia.） |
ø4 mm | |
