Spiral Coiled Tube

Coiling tube
Coiling tube
Coiling tube
Fluid piping

NL/UL

Inquiry

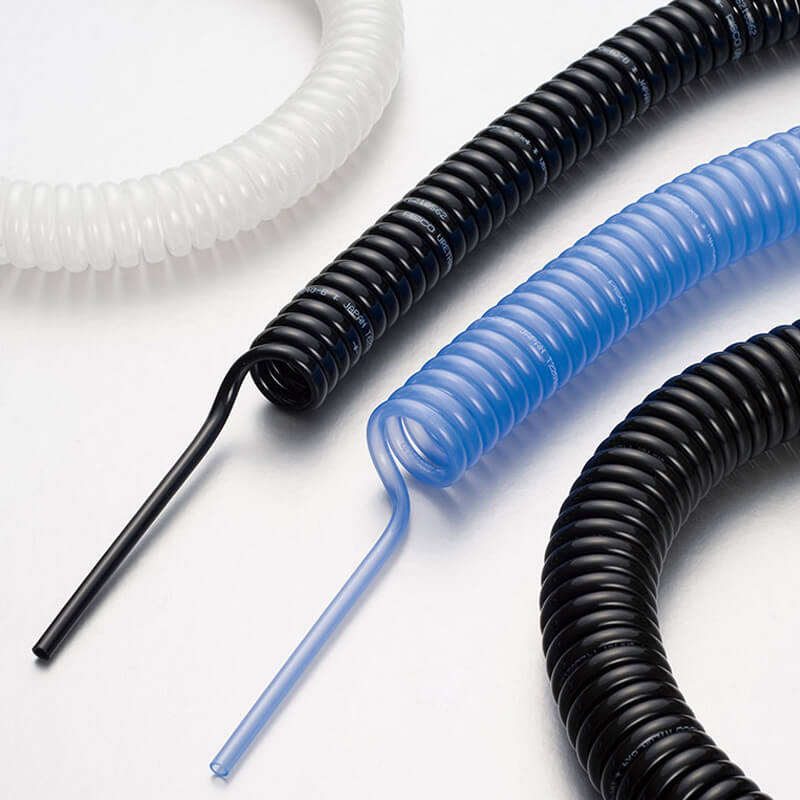

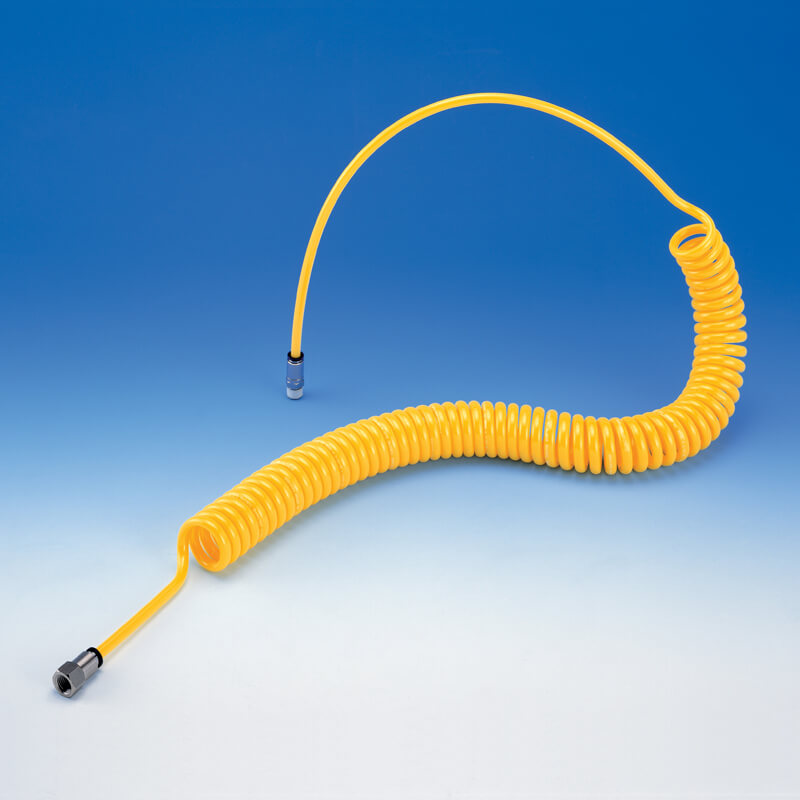

UL: Featuring flexible urethane tube, best suitable for piping of air tools. Color；10 colors, Size；6 sizes
NL: Featuring resilient nylon tube, best suitable for piping of air tools. Nylon coiled tube offers excellent coil memory. Color；9 colors, Size；5 sizes
  • Ideal choices for piping of air guns, pneumatic tools, etc.
  • Used for piping movable parts of equipment in a space-saving manner, also reducing joint stress.

Fluid medium Air, hot water and thermal oil (condition)
Max. operating pressure
(65%RH at 20℃)		 UL：1 MPa
NL：2 MPa
Max. vacuum -100 kpa
Operating temp. range UL：-15~60℃ (no freezing)
NL：-20~90℃ (no freezing)
Tube color UL：10 color (color sample)
NL：9 color (color sample)
WR Insert ring
Insert Ring, inserted in a tube, prevents the tube from contracting.
