  M5 plug washer material and appearance modification

Tube I.D. φ12,16,20,25,32 (mm). The long experience provided the following feature in pursuit of accuracy. durability and handiness.
  • Proven track record in manufacturing precision guided cylinders.
  • Multi-Ports as standard enabling two direction mounting option.
  • Flush fitting sensors.
  • Inbuilt high density rubber pad absorbs energy at the end of stroke.
  • Magnetic as standard.

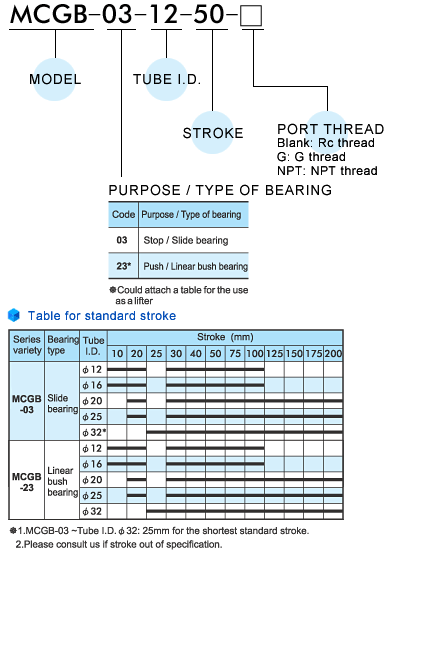

Acting type Double acting
Tube I.D. (mm) 12, 16, 20, 25, 32
Port size M5×0.8, Rc1/8
Medium Air
Operating pressure range 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature -5~+60℃ (No freezing)
Lubrication Not required
Cushion With rubber cushion pad
Sensor switch RCE, RCE1, RDEP
