Mini. cylinder with Non-rotating rod

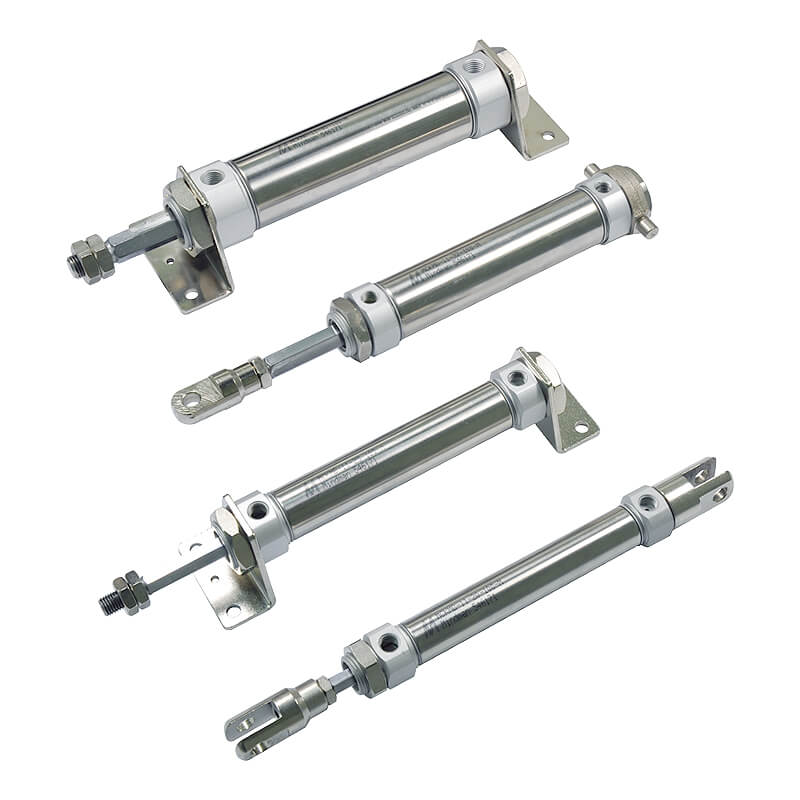

Tube I.D. φ 20, 25, 32, 40 (mm). Cylinder with hexagonal rod design enables non-rotating rod of rod. Designs of oil-filled alloy. Stainless cylinder tubes resist corrosion and abrasion.
- Non lubrication
Special housing and bushing enable self lubrication of piston rod. - High quality long service life
Cylinder with hexagonal rod design enables non-rotation of rod.
Hard anodised stainless steel cylinder tubes offer a high resistance to corrosion and low internal friction.
Cylinder mountings, available with a comprehensive range of accessories for rigid or flexible mounting.
Magnetic as standard.

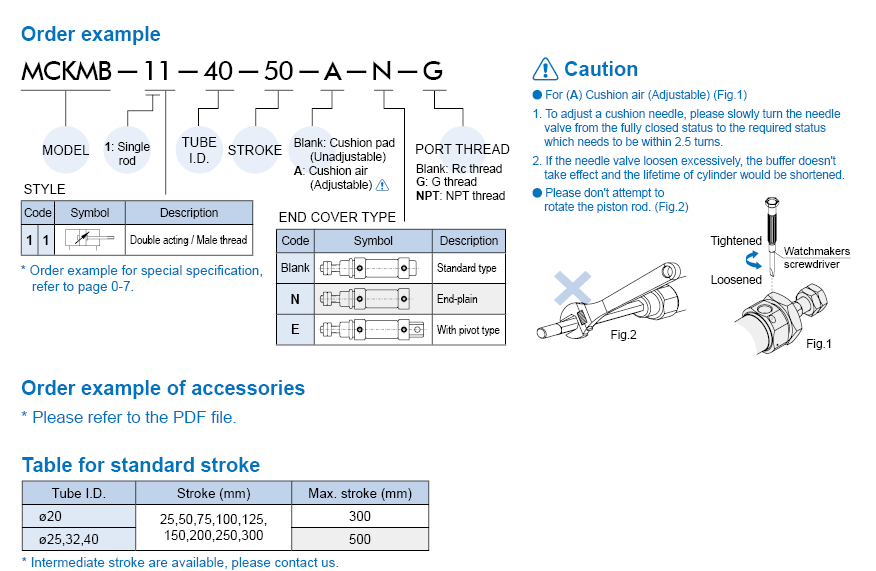

| Tube I.D. (mm) | 20, 25, 32, 40 |
|---|---|
| Port size | 20, 25, 32: Rc1/8, 40: Rc1/4 |
| Medium | Air |
| Operating pressure | 0.05~0.7 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Lubricator | Not required |
| Available speed range | 50~750 mm/sec |
| Max. allowable kinetic energy | Cushion pad 1.2J, Adjustable cushion 2.35J |
| Rod non-rotating accuracy | ±0.7°, ±0.5° |
| Allowable rotational torque | 2.0 kgf-cm, 2.5 kgf-cm, 4.5 kgf-cm |
| Sensor switch | RCM |
| Sensor switch band | BM20/25/32/40 |
| Remark | ※ The cylinder is allowed little leakage. Before the cylinder is sale, it has passed the standard of leakage test. |
