MESBE Stopper Electric Actuator | Patented lever-lock mechanism
Awarded the 2022 Taiwan Excellence Award. Size：32, 50, 63, 80, Stroke：20, 30, 40 mm, Patented lever-lock mechanism. Adjustable shock absorbers provide good capacity for different applications. Motor type：Step motor, Transmission：Trapezoidal screw + belt, Repeatability：±0.1 mm.
- Patented lever-lock mechanism.
- Proximity sensors are available.
- Magnetic as standard.
- Adjustable shock absorbers provide good capacity for different applications.

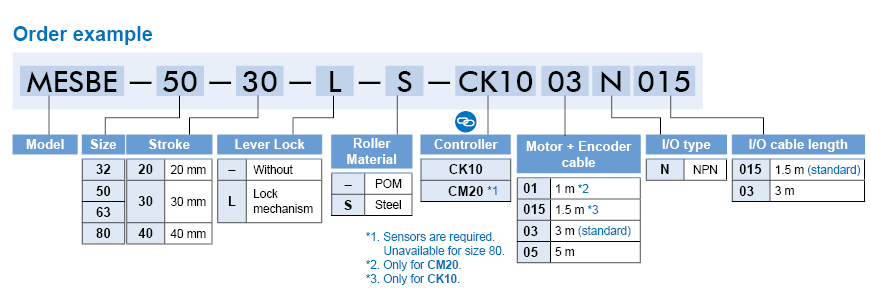

| Motor type | Step motor |
|---|---|
| Transmission | Trapezoidal screw + belt |
| Size | 32, 50, 63, 80 |
| Stroke | 20, 30, 40mm |
| Repeatability | ±0.1 mm |
| Ball screw lead | 1.5, 2 mm |
| Ascend / descend time | 1s |
| Max. operating frequency (c.p.m) | 5.5 |
| Ambient temperature | 0~+55°C (No freezing) |
| Ambient humidity (RH) | 35~85% (No condensation) |
| Motor size | □35, □42, □56, □60 |
| Encoder | Incremental encoder (4000PPR) |
| Rated voltage | DC 24V±10% |
| Cushion | Adjustable shock absorber |
| Sensor switch | RDC(V), RQC(V) |
| Proximity sensor | RJY |
| Weight | 1.45, 2, 5.42, 8.85 kg |
Please log-in
- Register
- Login In
- Anonymous login Caution
- Error Report
Anonymous login Caution Procedure Demonstration
- Video Guide ： 2D／3D downloading procedure demonstration.
- PDF file : 2D／3D downloading procedure demonstration.
- Anonymous Login allows you to download 2D/3D files without an account.
- Please confirm the accurate product model number before generating the 3D model files.
- If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
- When you use this CAD software to generate a file, please confirm that it matches the size and tolerance of the "PDF Catalog" on the website. If there is any discrepancy, please click the " Error Report" button above, and inform the model and wrong size, we will modify it as soon as possible, thank you for your assistance !
RDC/RQC Sensor switch
Assembling style: MAM*, MCJU, MCFB, MCMJP, MCDJ, MGT*-32~63, MCSF2-5, MCRPM-20~40, MCRPMD-10, MCRPMS, MSBE, MCRQ2, MCRQ2-J, MCRQ2-S, MCRJ-S, MCRC, MCHC-6/32/40, MCHCJ, MCHD, MCHH, MCHU2, MCHS2(-OS), MCHX2, MCHG2, MCHY2, METI, MEQI, MEGS, MEGT, MEJQ, MESF2, MESBE
RJY Proximity sensor
Assembling style: MCTC, MCHJ, MCHS, Operating voltage: 10~30V DC, Current consumption: 10mA max, Output current: 150mA max
CK10 Electric Actuator Controller
Support RS-485 communication (Modbus RTU), Support single / double pulse control, Support Position Table motion control function.
