Hydraulic -swing clamp cylinders

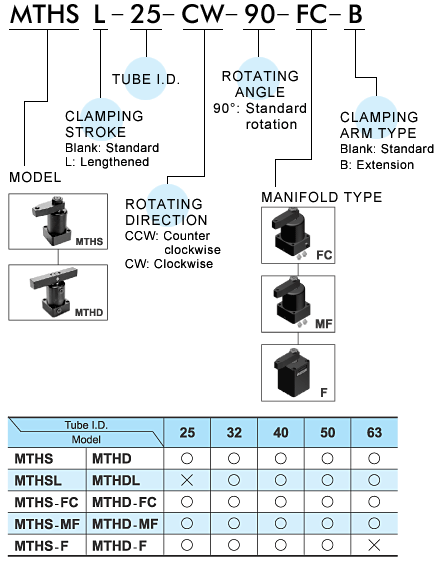

MTHS: Single side clamping arm / MTHD: Double sides clamping arm Tube I.D. φ25, 32, 40, 50, 63 (mm). These swing clamps are used when it is required to keep the fixture workpiece area free of straps and clamping components for unrestricted workpiece loading and unloading.
- Compact design available with large range of bore sizes.
- Available with both clockwise and anti clockwise movement.
- Available with single or double arms.
- Available with inbuilt flow control.
| Tube I.D. (mm) | 25,32,40,50,63 |
|---|---|
| Acting type | Double acting |
| Medium | Filtered oil |
| Proof pressure | 10 MPa |
| Operating pressure range | 0.5~7 MPa |
| Material of cylinder barrel | Carbon steel |
| Standard angle of rotation | 90°±2°(Angles of 0°, 45°and 60°are optional) |
| Rotating direction | Clockwise or counter clockwise |
