Solenoid valve
Body width: 30 mm, Port size: 3/8, Operating pressure range: 0.2~1.2 MPa, Proof pressure: 1.5 MPa, Flow: 1851, 1906 l/min.

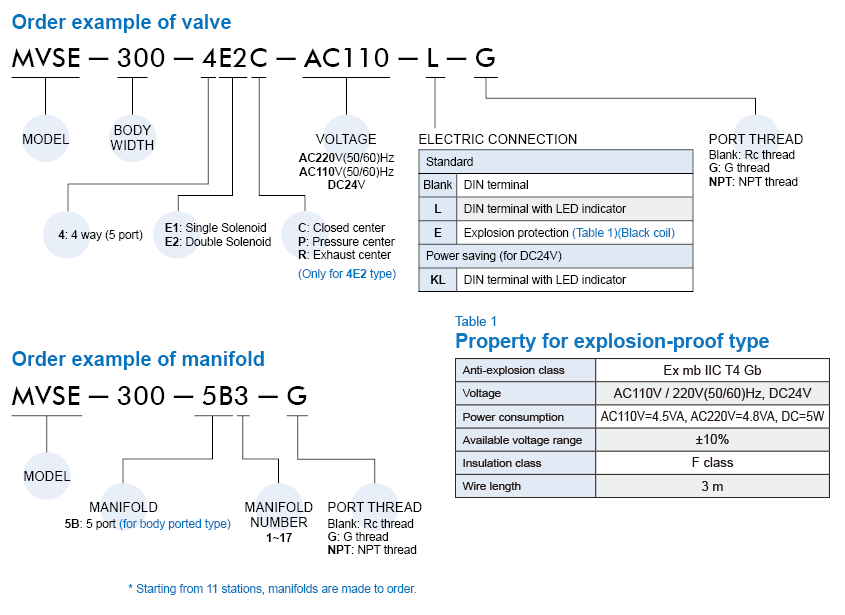

| Body width | 30 mm |
|---|---|
| Bore No. | 10A |
| Port size | 3/8 |
| No. of port | 5 |
| No. of position | 2, 3 |
| Medium | Air |
| Operating pressure range | 0.2~1.2 MPa , 0.3~1.2 MPa (5/3) |
| Proof pressure | 1.5 MPa |
| Flow | 1851, 1906 l/min |
| Effective orifice | 34.5, 35 mm2 (5/3) |
| Response time | 50 ms |
| Ambient temperature | －5~＋50℃ (No freezing) |
| Voltage | AC110V, AC220V (50/60)Hz, DC24V |
| Power consumption-Standard | AC=4.8/4.4VA, 6/4.9VA, DC=2W |
| Power consumption-Power saving | DC=Start: 2W(*) Power saving: 0.5W |
| Available voltage range | ±10% |
| Insulation class | F class |
| Weight | 406g~577g |
| Remark | * Power saving covert time 100ms. |
