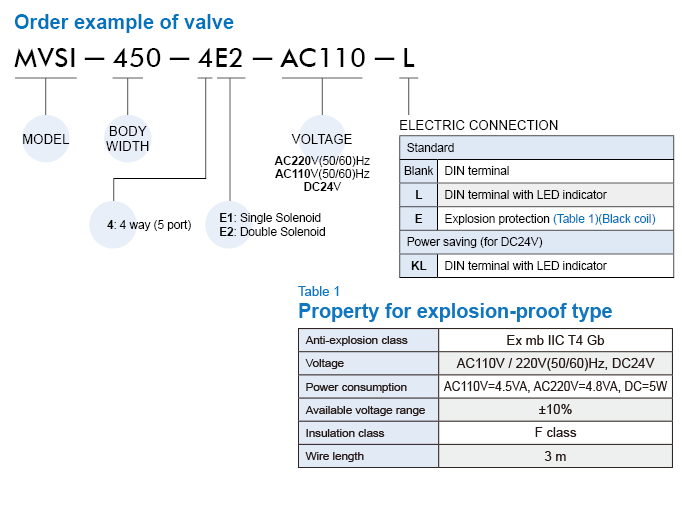

MVSI-450

Design change : Coil color (black→gray)

Body width: 45mm, No. of port :5, Operating pressure range: 0.2~0.7 MPa, Proof pressure: 1.05 MPa, Flow: 1470 l/min.
Body width 45mm
No. of port 5
No. of position 2
Medium Air
Operating pressure range 0.2~0.7 MPa
Proof pressure 1 MPa
Effective orifice 27 mm2
Response time 40 ms
Ambient temperature -5~+50℃ (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC24V
Power consumption AC=6/4.9VA, DC=2W
Available voltage range ±10%
Insulation class F class
Weight 380g, 540g
