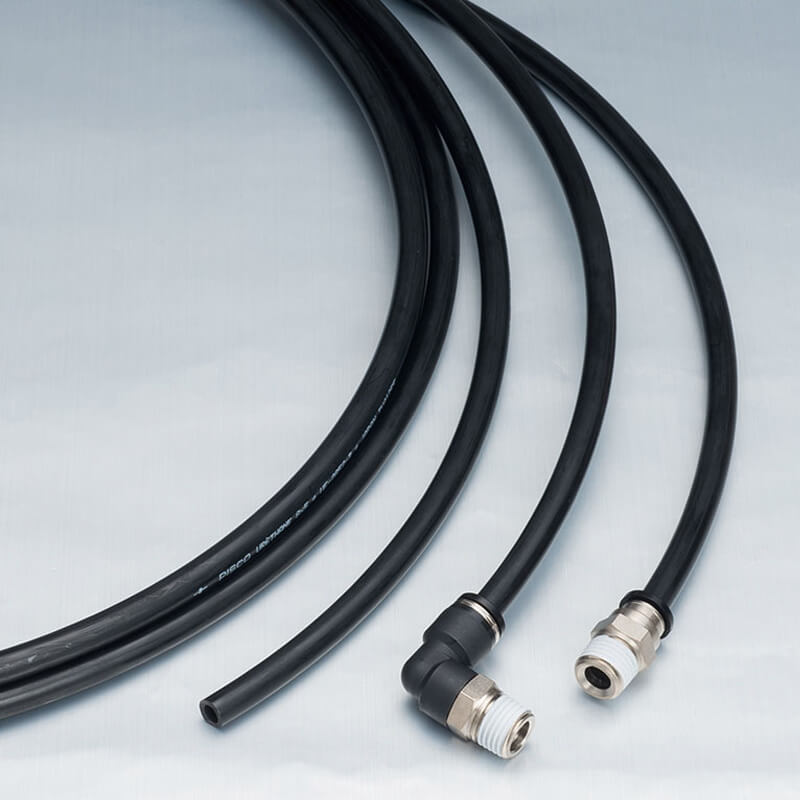

Anti-static (ESD) Tube

Anti-static tube
Anti-static tube
Fluid piping

UE

Inquiry
Fluid medium: Air. Max. operating pressure: 0.6 MPa
  • Polyurethane based ESD (anti-static) tubing
    Best suited for use on manufacturing or assembly line that requires dissipation of static electricity and prevention of electrification.
  • A cut mark is printed on the tubing every 500mm
    A cuyt mark is located every 500mm as a guide. The mark is just as a guide and the accuracy is not guaranteed.

Fluid medium Air
Max. operating pressure (65%RH at 20℃) 0.6 MPa
Max. vacuum -100 kpa
Operating temp. range -15~40℃ (no freezing)
Surface resistivity (Ω.cm) 1.4x103
Tube color Black (color sample)
P-EG Anti-static tube fitting
Fluid medium: Air, Max. operating pressure: 0.6 MPa, Max. vacuum: -100 kPa

VT Air pincette
Fluid medium: Air. Operating pressure range: 0.15~0.7 MPa. The Air Pincette, incorporating a Vacuum Pad and Vacuum Generator in the pen-shaped body, serves well in the assembly operation of small parts.
