Parallel gripper (3-Finger)

Parallel gripper
Parallel gripper

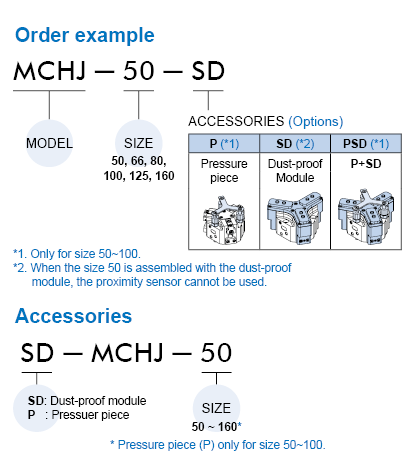

MCHJ

Inquiry
Size: 50, 66, 80, 100, 125, 160. Compact design to ensure minimum interference while operating; robust T rail design, ensure accurate gripping. Can reach maximum torque suitable for long jaws design.
  • Compact design to ensure minimum interference while operating;
    robust T rail design, ensure accurate gripping.
  • Can reach maximum torque suitable for long jaws design.
  • Circular piston-driven design ensure maximum clamping force.
  • Hose-free direct connection: Air supply channel can connect directly without piping or through
    thread to assure the flexibility of supplying compressed air on any kind of automation system.
  • Magnetic as standard.
Acting type Double acting
Size 50, 66, 80, 100, 125, 160
Medium Air
Stroke per-jaw 4~16 mm
Effective external gripping force (※) 95~1756 N
Ambient temperature ＋5℃~ ＋80℃
Close/Open time 0.025~0.25 s
Operating pressure range 0.2~0.8 MPa
Lubrication Not required
Compressed air consumption 9.2~485 cm3
Sensor switch 2 wire  RDFE(V): Non-contact
3 wire  RNFE(V): NPN, RPFE(V): PNP
Proximity sensor RJY
Accessories Mounting block, Accessory kits
Weight 0.22 ~ 5.2 kg
Remark ※ Under the condition of clamping length 40mm and operation pressure 0.6 MPa.

Anonymous login Caution Procedure Demonstration

  • Video Guide ： 2D／3D downloading procedure demonstration.
  • PDF file : 2D／3D downloading procedure demonstration.
  • Anonymous Login allows you to download 2D/3D files without an account.
  • Please confirm the accurate product model number before generating the 3D model files.
  • If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
  • When you use this CAD software to generate a file, please confirm that it matches the size and tolerance of the "PDF Catalog" on the website. If there is any discrepancy, please click the " Error Report" button above, and inform the model and wrong size, we will modify it as soon as possible, thank you for your assistance !
RDFE Sensor switch
Assembling style: MAM*, MCJU, MCFB, MCMJP, MCDJ, MCSF-5, MSBE, MCRJ-S, MCRQ, MCRQ-S, MCHC-6,32,40, MCHD, MCHH, MCHU, MCHS, MCHX, MCHG2, MCHJ, MCHY, MCRT, MEQI, MESF2

JS Speed controller
Fluid medium: Air
Operating pressure range: 0.05~1 MPa

RDGV Sensor switch
Assembling style: MCJU, MCFB, MCGS .

RJY Proximity sensor
 Assembling style: MCTC, MCHJ, MCHS, Operating voltage: 10~30V DC, Current consumption: 10mA max, Output current: 150mA max
