MCRQ2-S Rotary Actuator | Rotation angle: 90°, 180°

Rotary actuator
Rotary actuator
Rotary actuator

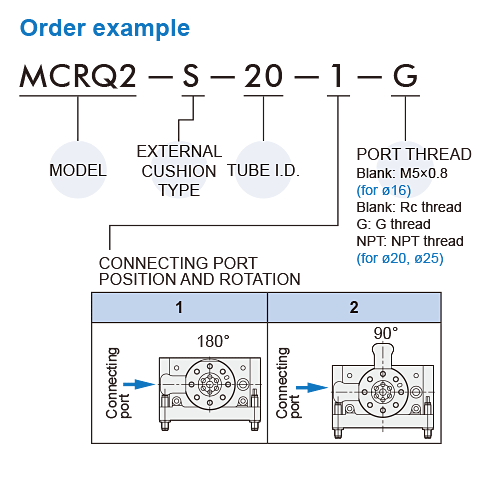

MCRQ2-S

Inquiry
Tube I.D. φ 16, 20, 25 (mm). Rotation angle 90°, 180°, Allowable kinetic energy are 4 to 10 times more than MCRQ2.
  • 4 to 10 times more allowable kinetic energy
    (compared with internal shock absorber type)
  • Total length shortened
    Longitudinal mounting space is reduced because there is no    protrusion from adjustment bolts or internal shock absorbers.
Acting type Double acting
Tube I.D. (mm) φ16, φ20, φ25
Port size φ16 (M5×0.8), φ20, φ25 (Rc1/8)
Medium Air
Rotation 90°, 180°
Max. operating pressure 1 MPa (※1)
Min. operating pressure 0.2 MPa
Ambient temperature 0~＋60℃ (No freezing)
Allowable kinetic energy (J) φ16 (0.231), φ20 (1.21), φ25 (1.82)
Rotation time adjustment range (s/90°) 0.2~1.0 (※2)
Cushion Shock absorber
Shock absorber type φ16 (MDSC-0806-3N), φ20 (MDSC-1008-3N), φ25 (MDSC-1412-3N)
Angle adjustment range Each rotation end ±3°
Weight 90°: 0.67, 1.55, 2.52 kg, 180°: 0.64, 1.48, 2.41 kg
Sensor switch RDC(V), RQC(V)
Remark ※1. The maximum operating pressure of the actuator is restricted by the maximum allowable thrust of the shock absorber.
※2. For stable operation the time required for the rotary table to reach the rotation end after deceleration differs depending
      on the operating conditions (inertial moment of the load, rotation speed, and operating pressure), however,
      approximately 0.2 to 2 seconds are required.
