Compact twin-guide cylinder
Tube I.D. φ20, 25, 32, 40, 63, 80, 100 mm, Higher loading capacity compared to unguided standard compact cylinders. Wide range of bore sizes and strokes.
- Higher loading capacity compared to unguided standard compact cylinders.
- Wide range of bore sizes and strokes.
- Ultra compact, light weight and space saving.
- Sensor slots on RCI sides for flush mounting of proximity sensors.
- Magnetic as standard.

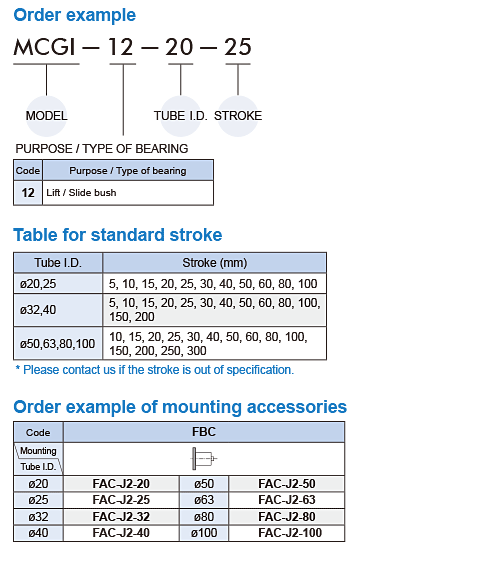

| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 20, 25, 32, 40, 50, 63, 80, 100 |
| Port size | M5×0.8, G1/8 |
| Medium | Air |
| Operating pressure range | φ20, 25: 0.15~1 MPa φ32~100: 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5℃~＋60℃ (No freezing) |
| Lubrication | Without lubrication |
| Available speed range | 50~500 mm/sec |
| Cushion | Rubber bumper |
| Stroke length tolerance | ＋0~＋1.0 mm (※1) |
| Sensor switch | RCI |
| Remark | ※1. Stroke length tolerance does not include the amount of bumper change. |
