MCRQ2 Rotary Actuator | Adjustable rotation angle (0°~190°)
Tube I.D. φ 12, 16, 20, 25, 32, 40 mm. Adjustable rotation range (0°~190°). Operating range of table is 0°~190° by angle adjusting screw. Compact design using double rack and single pinion.
- Centering boss and locating hole for accurate positioning.
- Operating range of table is 0°~190° by angle adjusting screw.
- Compact design using double rack and single pinion.
- Hollow shaft standard for wiring and piping.
- Possible to fit shock absorbers as stops.
- Ease of mounting with integral.
- Magnetic as standard.

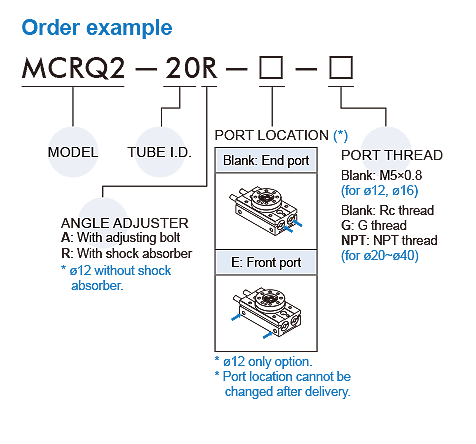

| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | φ12, φ16, φ20, φ25, φ32, φ40 |
| Port size | φ12, 16: M5×0.8, φ20~φ40: Rc1/8 |
| Medium | Air |
| Operating pressure range | adjusting bolt: 0.1~1 MPa, shock absorber: 0.1~0.6 MPa (※1) |
| Ambient temperature | 0~＋60℃ |
| Cushion | adjusting bolt: φ12~40 (Rubber bumper) shock absorber: φ16~40 (Shock absorber) (※3) |
| Angle adjustment range | 0° to 190°(max.)(※4) |
| Sensor switch | RDC(V), RQC(V) |
| Weight | 0.25~7.72 kg |
| Remark | ※1. The maximum operating pressure of the actuator is restricted by the maximum allowable thrust of the shock absorber. ※2. No-load conditions. ※3. The shock absorber is expendable. Replace when damping performance decrease. ※4. Be careful if the rotation angle of a type with internal shock absorber is set below the value in the table below, the piston stroke will be smaller than the shock absorber’s effective stroke, resulting in decreased energy absorption ability. |
Please log-in
- Register
- Login In
- Anonymous login Caution
- Error Report
Anonymous login Caution Procedure Demonstration
- Video Guide ： 2D／3D downloading procedure demonstration.
- PDF file : 2D／3D downloading procedure demonstration.
- Anonymous Login allows you to download 2D/3D files without an account.
- Please confirm the accurate product model number before generating the 3D model files.
- If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
- When you use this CAD software to generate a file, please confirm that it matches the size and tolerance of the "PDF Catalog" on the website. If there is any discrepancy, please click the " Error Report" button above, and inform the model and wrong size, we will modify it as soon as possible, thank you for your assistance !
RDC/RQC Sensor switch
Assembling style: MAM*, MCJU, MCFB, MCMJP, MCDJ, MGT*-32~63, MCSF-5, MCRPM-20~40, MCRPMD-10, MCRPMS, MSBE, MCRJ-S, MCRC, MCHC-6/32/40, MCHCJ, MCHD, MCHH, MCHG2, MCHY2, METI, MEQI, MEGT, MEJQ, MESF2, MESBE.
